4X Self-Centering Drill Bits Hex Shank

Features

? ? ? - Type:Wood Drill Bit Hole Puncher

? ? ? - Material:HSS & Brass

? ? ? - Name:Self Centering Door Window Hinge

? ? ? - Handle type:Hex handle

? ? ? - Colour:Silver

? ? ? - Handle diameter:1/4" / 6.35mm

? ? ? - Hole Size:5/64" ,7/64",9/64", 11/64"

? ? ? - Length: 83mm, 86mm, 93mm, 97mm

? ? ? - These self centering drill bits put hinges right where they should be in the center

? ? ? - 4 of the most often used sizes for carpenters, cabinet, furniture makers and other wood working trades

? ? ? - Positioning accuracy, will not shift, the chips will automatic discharge from the hole on either side of the top of the drill, not stuck drill

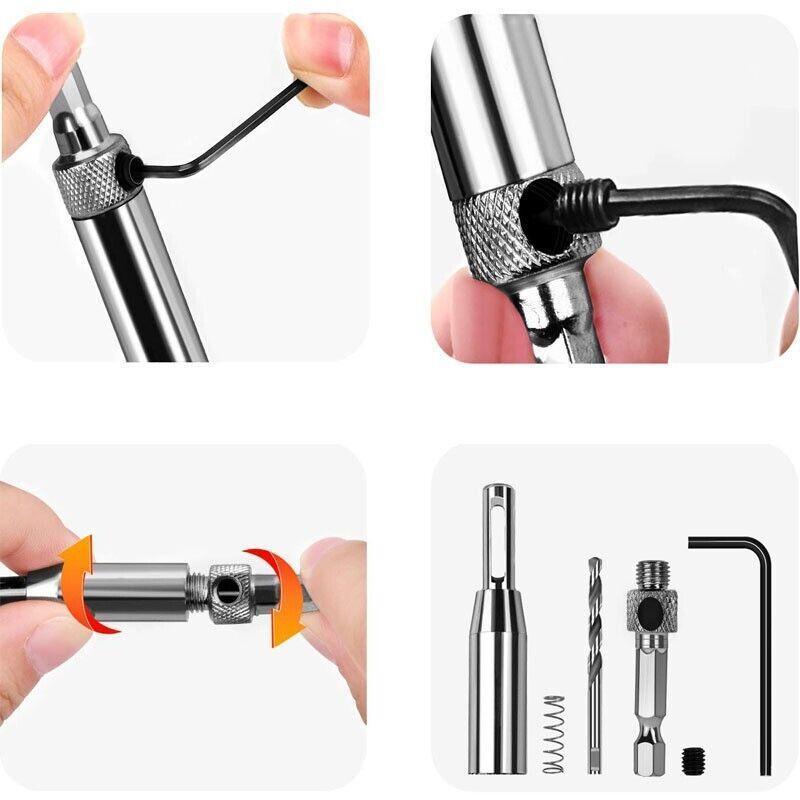

? ? ? - Easy to use and install

Diameter of holes:

? ? ? - 5/64'': Hole diameter is about 2mm, Use about 2.2 - 2.8mm tapping screw

? ? ? - 7/64'': Hole diameter is about 2.8mm,Use about 3 - 3.5mm tapping screw

? ? ? - 9/64'': Hole diameter is about 3.5mm,Use about 4 - 4.5 mm tapping screw

? ? ? - 11/64'': Hole diameter is about 4.5mm,Use about 5 - 5.5 mm tapping screw

Package Included

? - 1 Set of 4 x Hinge Drill Bits &1 PC?Spanners

NOTES

Please allow 1-3 cm difference due to manual measurements.

Please note that slight colour difference should be acceptable

?due to the light and screen.
