X-BULL 500A 12V Winch Solenoid Relay and Wireless Remote

Wireless remote control

Product Features:

Wireless winch remote control with twin handset. Will work with any 12 volt solenoid operated winch. Latest heavy duty long range model Visual indicator light shows remote operation 2 wireless remotes

Specifications:

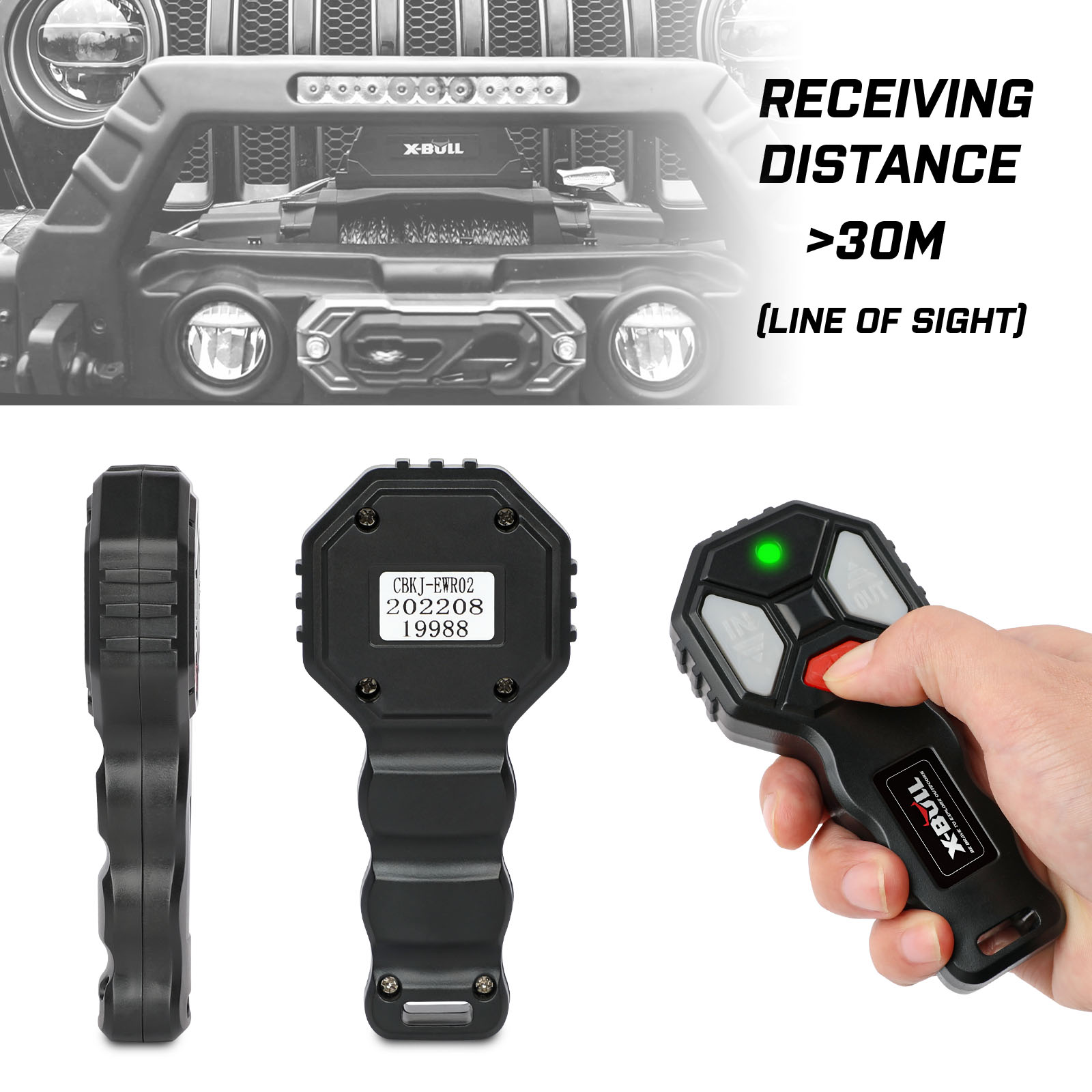

Range: Approx 45metres Power voltage:12V Working Frequency: 315MHz/433.92MHz The Remote control needs to be activated To activate Press both the two buttons at same time for 5 seconds until the LED lights up. Turn off Press both the two buttons at same time for 5 seconds until the LED lights turn off. Caution the remote will power off automatically after 2 minuies. Winch Solenoid Coil rated voltage :6-110V DC Operating power :15W Contact circuit voltage and loading current:80V DC Max 250V AC 500A Mechanical life :100,000Ops Electrical life :50,000Ops Environment temperature :-40 C -85 C Frequency :10Hz-200Hz Speed : 60-100 per min Operation regulation :Continue Installation direction :Random

Product Features:

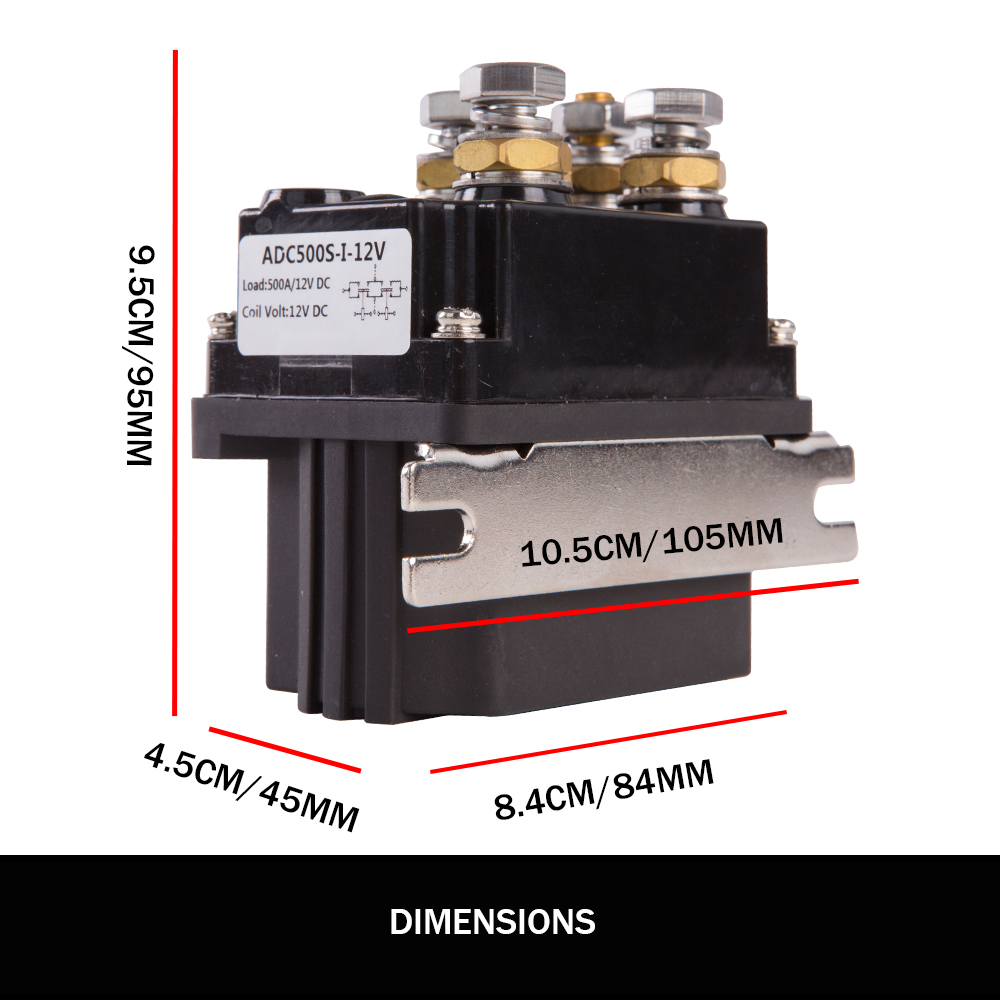

500amp 12v Winch Solenoid Sealed and corrosion resistant Solid heavy duty construction Wireless remote compatible Solid heavy duty construction Suitable 9500lbs-17000lbs - Series wound and permanent magnet

Package Contents:

2 x Remotes 1 x Receiver 1 x User manual and battery included 1 x Winch Solenoid
